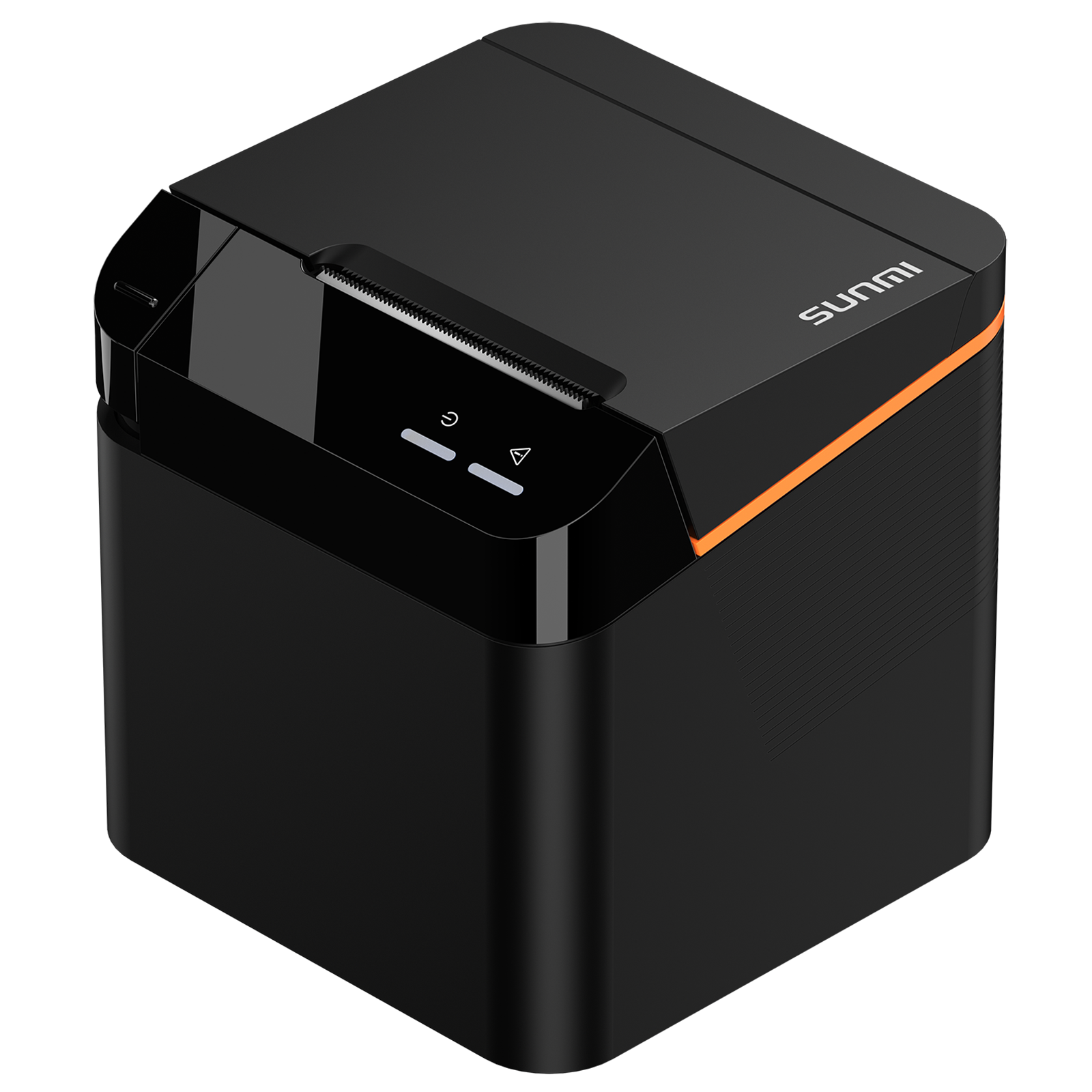

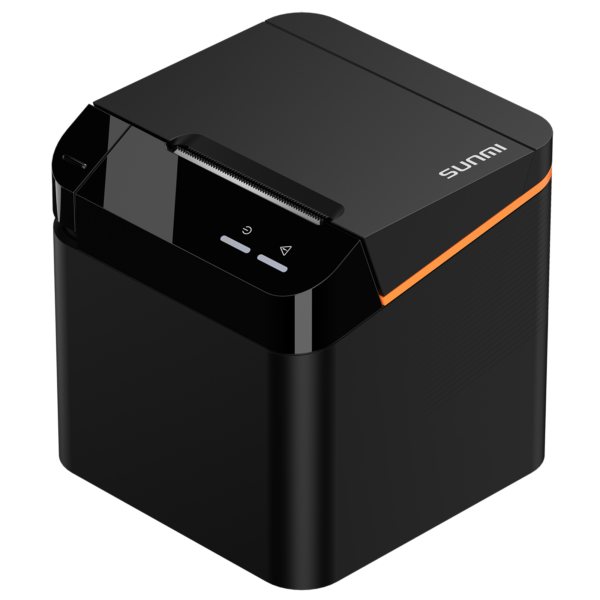

la fiche technique de IMPRIMANT SUNMI 80mm
| Printer | Printing Method: Thermal |
| Paper Width: 80mm | |
| Dots: 576 dots | |
| Effective Print Width: 72mm | |
| Print Life: 150km | |
| Print Speed: Max. 250mm/s | |
| Cutter | Paper Thickness supported: 0.048 ~ 0.08mm |
| Cutter Life：>1.5 Million times | |
| Printing Paper | Paper Type: Thermal paper |
| Paper Width :80mm | |
| Paper Thickness: 0.06 ~ 0.08mm | |
| Paper Roll Outer Diameter: 80mm | |
| Till Roll Loading Method: Top cover for easy loading | |
| Storage | Memory: 64MB |
| Flash: 256MB | |
| Character Set | Font Library: Unicode character set |
| Chinese: GB18030 24×24dots | |
| Numbering: ASCⅡ 12×24dots | |
| User Defined Character Set: Supported | |
| Sensor | Out of Paper Sensor: Optical detection |
| Open Cover Sensor: Mechanical detection | |
| Paper Jam Sensor: Optical detection | |
| Paper Pick-Up Sensor: Optical detection | |
| Black Mark Sensor: Optical detection | |
| Temperature Sensor: Heat detection | |
| Indicator Lights | Power Indicator: Green |
| Network Indicator: Blue | |
| User Reminder Indicator: White | |
| Error indicator: Red | |
| Buttons | Volume: 2* volume +/- |
| Function: 2* function buttons | |
| Pairing: 1* Pairing | |
| Ethernet | Port: RJ45 |
| Speed: 10/100Mbps | |
| Wi-Fi | Protocol Supported: IEEE 802.11 b/g/n |
| Frequency Band: 2.4GHz | |
| Bluetooth | Protocol Supported: BLE, SPP, IBEACON |
| Frequency Band: 2.4GHz | |
| Speaker | Power: 3W |
| Volume：≥105dB | |
| Power Input | Power Input: Working Voltage: DC 24V/2.5A |
| Port: DIN 4P | |
| Port | Cash Drawer: RJ12 24V/1A |
| USB: TypeC USB 2.0 | |
| Environment | Operating Environment: 0℃～50℃, 30%～85%RH |
| Storage Environment: -20℃～60℃, ≤93%RH (40℃) | |
| Protection Level | IP52; insect- |
| water-proof, easy to clean (oil) | |
| Dimensions | 130mm(L)×130mm(W)×130mm(H) |
| Weight | 855g (without paper) |
| Software Supported | Print Protocol: ESC/POS Instruction set |
| Cloud Communication: MQTT+HTTPS | |
| Color | Black/Silver |
