N130BT (1D, 2D, QR)

2D Handheld Barcode Scanner

• High performance with hardware independent decoding .

• An extended DOF, apply to different reading distances.

• Highly accurate, fast reading on barcodes, even on damaged and poor contrast barcodes.

• Support kinds of keyboard languages.

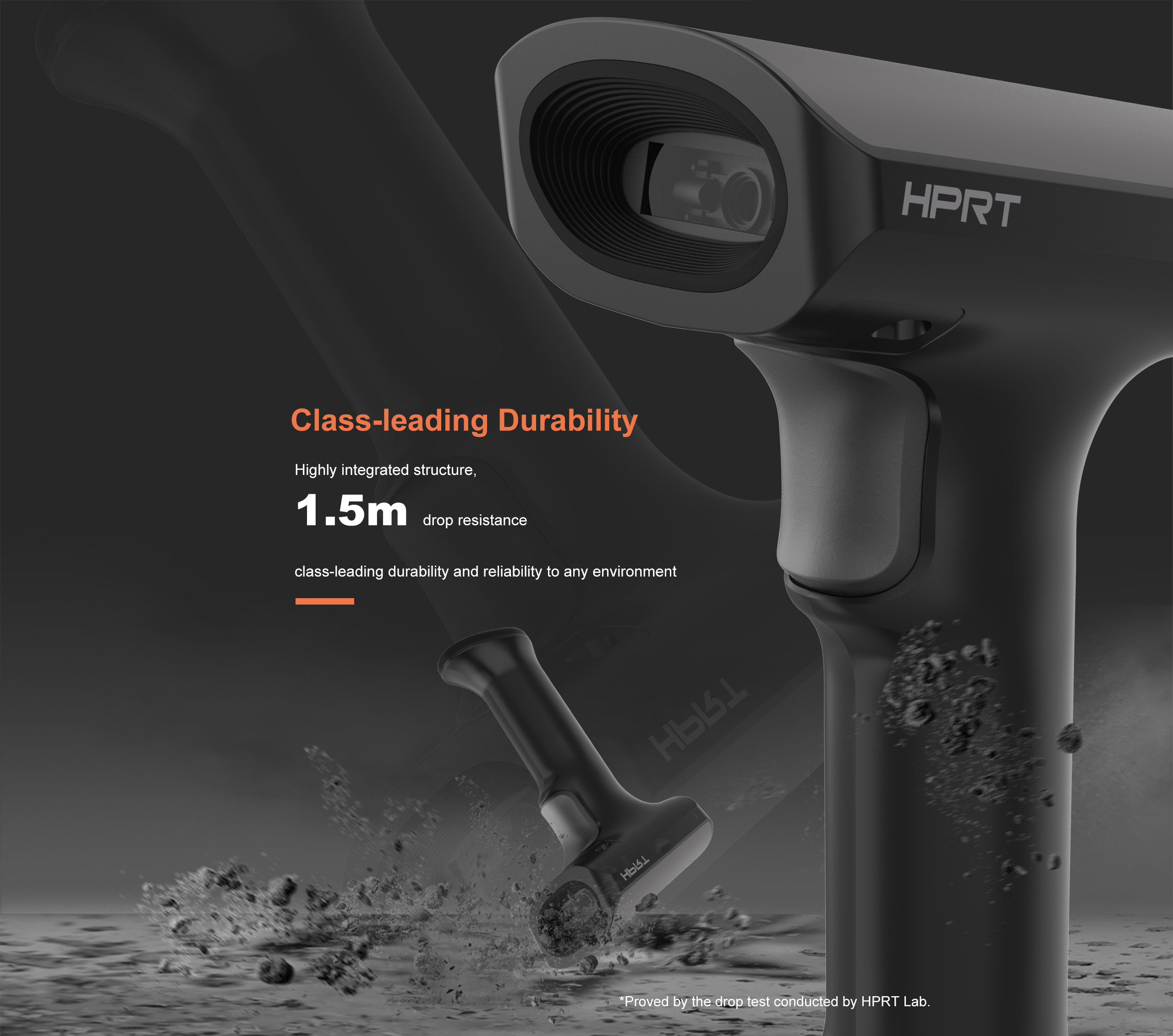

• Highly integrated structure, best-in-class durability.

• Fully compatible with multiple systems.

• Bluetooth option–N130BT.

Description

Model	N130	N130BT
Sensor	CMOS
Pixels	640*480（GS）
Illumination	White light
Aiming	Red light
Symbologies	2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes etc 1 D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E,UPCA, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5,lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc.
Recognizing Precision	≥3mil
Depth of Field	EAN-13：30-300mm QR（20mil）：20-200mm
Field of view	Horizontal: 40°, vertical: 30°
Dimension(mm)	9363166
Notification	Buzzer,LED light
Weight	138g	171g
Interface	RJ-45 interface	Type-C interface
System Interfaces	RS-232 serial interface USB keyboard USB virtual serial interface”	USB keyboard USB virtual serial interface Bluetooth interface
Operating Current	Standby: 50mA Working: 300mA
Operating Voltage	5VDC±10%
Drop	1.5m
Environmental Sealing	IP42
Certifications	CE FCC
Radio Technology		Bluetooth 5.0
Operating Voltage	5VDC±10%	3.7VDC±10%
Operating Current	Standby: 50mA; Working: 230mA	Standby: 40mA; Working: 130mA
